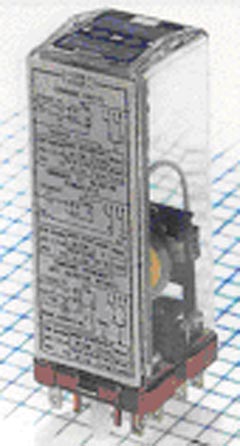

CAQ
Description
Instantaneous relay with rapid memory.
Pluggable on socket with a withdrawal clasp and square guide pins which can act as a key to ensure that the correct relay is used at the correct voltage (see our withdrawal guide in the technical support pages of this site)
Pluggable on the following sockets : EVB2/CA, ERC2/CA or ERDL2/CA.
Pluggable on socket with a withdrawal clasp and square guide pins which can act as a key to ensure that the correct relay is used at the correct voltage (see our withdrawal guide in the technical support pages of this site)
Pluggable on the following sockets : EVB2/CA, ERC2/CA or ERDL2/CA.
Encombrement
Principe de fonctionnement
This relay is a rapid memory which acts when it receives an impulse with duration > 0.5 ms (terminal 14). This information is re-sent (tipping of the two CO contacts) when validated by action on terminal 13 (validation). This information is directly re-sent il terminals 13 and 15 are linked. Return to rest state is made by cutting-off terminal 15 (reset).See the operation diagram hereafter
Caractéristiques
| Fonction | instantaneous |
| Présentation | under cover |
| Raccordement | on front or rear wiring socket |
| Nombre de manoeuvres mécaniques | 35.000.000 |
| Température de fonctionnement | - 5°C to + 40°C |
| Température de stockage | - 40°C to + 70°C |
| Catégorie climatique | optional reinforced climatic protection |
| Tension de choc | 3 KV (wave 1,2/50 µs) |
| Rigidité diélectrique | 2200 V eff |
| Masa | 200 g. |
| Degré de protection | IP 40 (according to NFC 20-010) |
| Tenue aux chocs mécaniques | severity 50 A (according to NFC 20-608) |
| Tenue aux vibrations | 0,35 mm / 10-55 Hz (according to NFC 20-616) |
Bobine
| Courant continu | Courant alternatif | ||
| Tension nominale mini. | 12 V | ||
| Tension nominale maxi. | 220 V | ||
| Domaine d'action | -20/+10% of nominal voltage | ||
| Classe de puissance | 4 W permanently - 0,5 W control impulse | ||
Contactos
| Número de contactos | 2 |
| Courant permanent maxi. admissible | 8 A per contact |
| Commutation faible recharge | 0,1 VA with min voltage 1 V and/or I min 1 mA |
Pouvoir de coupure
| COURANT CONTINU | ||||||
|
||||||
| COURANT ALTERNATIF | ||||||
|
||||||
Diagramme de fonctionnement
see detailed operation diagram here above
Versions
. CAQ relay with reinforced climatic protection
. CAQP relay with control by positive polarity
. CAQN relay with control by negative polarity
. CAQ relay with impulse < 0,5 ms
. CAQP relay with control by positive polarity
. CAQN relay with control by negative polarity
. CAQ relay with impulse < 0,5 ms
