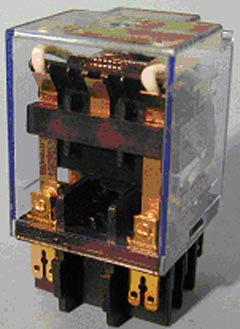

    Instantaneous relay 1, 2 or 3 CO contacts.

    Connection with Faston double clips of 2.8 x 0.8 mm

    Detailed table of coil resistance date is available in the technical support pages of this site or can be sent upon request.

    Dimensions

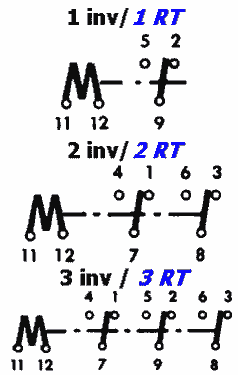

    Connection

    Technical features

    Function instantaneous
    Presentation under cover
    Connection on Faston double clips of 2.8 x 0.8 mm
    Number of mechanical operations 10.000.000
    Operating temperature - 10 to + 40°C
    Storage temperature - 20°C to + 85°C
    Climatic protection reinforced climatic protection
    Shock voltage 15 g - 11 ms
    Dielectric strength 2 KV-50 Hz-1 min at 40°C and 70% HR
    Insulation resistance > 1.000 MOhms (new relay)
    Weight 70 g.

    Coil data

      Direct current Alternative current
    Min. nominal voltage DC 6 V 6 V
    Min. nominal voltage AC 220 V 400 V
    Operating range -20/+10% of nominal voltage
    Power requirement 2,2W 4,5 VA 3 VA

    Contacts

    Number of contacts 1, 2 or 3
    Max. load current 10 A per contact
    Low power switching 40 mA min for 6 V
    Short-circuit load 250 A / 30 ms
    Response time (bounce time not included) DC < 20 ms - AC < 25 ms
    Bounce time < 7 ms

    Contacts rating

    DIRECT CURRENT
    resistive load inductive load L/R = 20 ms
    ALTERNATIVE CURRENT
    resistive load inductive load cos phi = 0.7

    Versions

    Relay 1286 can be mounted on metal sheet (by plastic support + 2 M4 screws or by M4x8 bolt + positioning part) or on symetrical or dissymetrical DIN tracks with specific adaptators to be mentioned on your order.

    See detailed indication regarding mounting and withdrawal in our technical support pages.

    Non-contractual document - characteristics to be confirmed before order
