7B08T

Weight : 82 g.

Power supply : 6 to 24 VDC

Description

LINEAR MONOSTABLE SOLENOID WITH MAGNETIC LOCKING BY PERMANENT MAGNET

POWER REQUIREMENTS :
 direct current : 40 W

HOLD FORCE thanks to the permanent magnet : 2,4 daN with power supply at nominal voltage. : direct current : 40 W: 2,4 daN with power supply at nominal voltage.

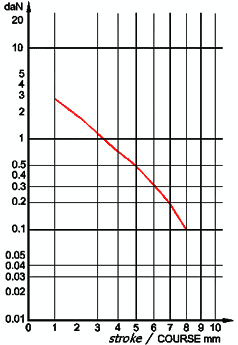

Performances

• Direct current

——– duty cycle intermittent service nominal voltage cold coil

Dimensions

• Direct current

7B08T - front view   7B08T - back view


Technical features

Connection On wires length 200 mm

Non-contractual document - characteristics to be confirmed before order
TEC AUTOMATISMES reserves the right to modify description and specifications without notice
