7R0520

Weight : 18 g.

Power supply : 6 to 48 VDC

Description

LINEAR MINIATURE SOLENOID FOR LITTLE MECHANISMS


Power requirements

• Direct current

Duty cycle 100 % 25 % 10 %
Nominal power 1,6 W - 16 W

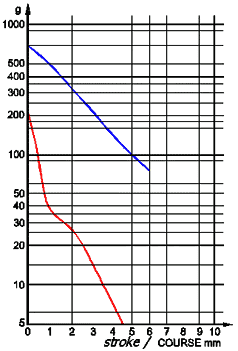

Performances

• Direct current

In blue = duty cycle 10% nominal voltage / in red = duty cycle 100% min. voltage hot coil

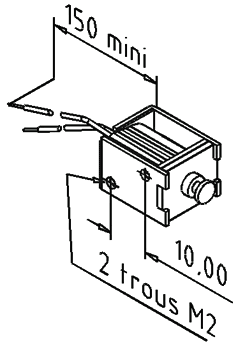

Dimensions

• Direct current

7R0520 - front view   7R0520 - back view


Technical features

Connection On wires length 150 mm

Non-contractual document - characteristics to be confirmed before order
TEC AUTOMATISMES reserves the right to modify description and specifications without notice
