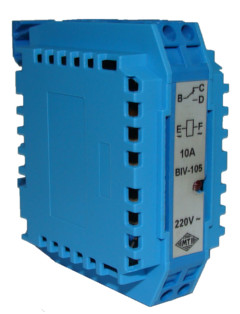

BIV-105

    Description

    Monostable instantaneous relay. 1 RT - 10 A

    BIV-105 are terminals for mounting onto rails of 35 mm or G.

    They are characterized by a compact conception incorporating an instantaneous relay 1 RT - 10 A.

    Its special character makes it a basic element for system interfaces realization.

    Dimensions

    Connection

    Technical features

    Function Instantaneous
    Presentation Under case
    Connection onto rails C or G
    Number of mechanical operations 5.000.000
    Operating temperature -30° C +40° C
    Climatic protection Reinforced climatic protection
    Shock voltage 3 000 V crête
    Dielectric strength between coil and contacts - 2 000 V eff
    Insulation resistance > 1000 MOhms
    Operate time DC: 10 ms AC: 12 ms
    Release time DC, AC: 5 ms

    Coil data

      Direct current Alternative current
    Min. nominal voltage DC 6 - 12 -24 - 48 - 125 V 12 - 24 - 48 - 120 - 230 V
    Power requirement 0,6 W to1,2 W 0,6 VA to 2,6 VA

    Contacts

    Number of contacts 1
    Max. load current 10 A

    Non-contractual document - characteristics to be confirmed before order
    TEC AUTOMATISMES reserves the right to modify description and specifications without notice
