CONTROL CABINET FOR WASTE SORTING CENTER - CABINET 1

Application

Control of the 80 motors for a waste sorting centre, this function is provided by 3 electric cabinets.



The function of this first cabinet is to provide the power supply to the two other cabinets in the installation.





Technical features

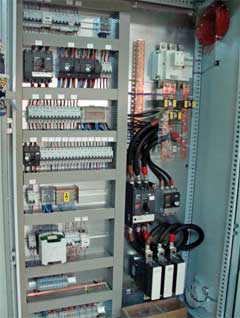

Two door steel cabinet plus base, fitted with lighting and ventilation.

 2000 x 1200 x 500 (plus 200 mm base)











Components

  • 3P 630A Disconnecter
  • 1 3P 630A circuit breaker
  • 1 3P 630A contactor
  • Various process cabinet power supply outlets



  • On the front face:

         -             1 triple LED indicator

         -             1 DIRIS A40 measurement system











Non-contractual document - characteristics to be confirmed before order
TEC AUTOMATISMES reserves the right to modify description and specifications without notice
