Description

Instantaneous relay - 4 CO contacts - 15 A.

Pluggable on front wiring socket (9705) or rear wiring socket (9723)

Detailed table of coil resistance data is available in the technical support pages of this site or can be sent upon request.

Dimensions

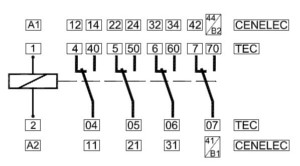

Connection

Technical features

Function Instantaneous
Presentation under cover
Connection on front or rear wiring socket
Number of mechanical operations 15.000.000
Operating temperature - 25 to + 55??C
Storage temperature - 40??C to + 85??C
Climatic protection reinforced climatic protection
Shock voltage 50 g - 11 ms
Dielectric strength 2,5 KV - 50 Hz
Insulation resistance > or = 1.000 MOhms (500 VDC)
Weight 185 g.

Coil data

  Direct current Alternative current
Min. nominal voltage DC 6 V 6 V - 50 or 60 Hz
Min. nominal voltage AC 220 V 380 V - 50 or 60 Hz
Operating range -20/+10% of nominal voltage
Power requirement 4 W 11 VA 6 VA

Contacts

Number of contacts 4
Max. load current 15 A per contact
Low power switching 200 mVA with min voltage 5 V or I Min 10 mA
Short-circuit load 250 A / 30 ms
Response time (bounce time not included) DC < 30 ms - AC < 35 ms
Bounce time DC < 10 ms - AC < 16 ms

Contacts rating

DIRECT CURRENT
resistive load inductive load - L/R = 40 ms
ALTERNATIVE CURRENT
resistive load inductive load - cos phi = 0,5

Versions

Following options are available with 1753 relay : mechanical indicator, test push-button, withdrawal. It can also bear CENELEC numbering. All options to be mentioned on the order.

Contact us

Non-contractual document - characteristics to be confirmed before order
