Description

Instantaneous relay -  4 CO contacts, 8-10 A.

Pluggable on the following sockets : 9244, 9246, 9243 & 9946.

Detailed table of the coil resistance data is available in the technical support pages of this site or can be sent upon request.

Dimensions

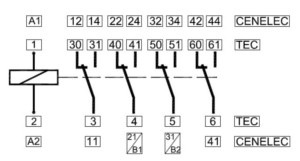

Connection

Technical features

Function Instantaneous
Presentation under cover
Connection on front or rear wiring socket
Number of mechanical operations 10.000.000
Operating temperature - 25 to + 60??C
Storage temperature - 40??C to + 80??C
Climatic protection reinforced climatic protection
Shock voltage 50 g - 11 ms
Dielectric strength 2,5 KV-50 Hz-1 min at 40??C and 70% HR
Insulation resistance 200 MOhms
Weight 80 g.

Coil data

  Direct current Alternative current
Min. nominal voltage DC 6 V 6 V
Min. nominal voltage AC 220 V 400 V
Operating range -20/+10% of nominal voltage
Power requirement 2,2W 4,5 VA 3 VA

Contacts

Number of contacts 4
Max. load current 10 A per contact
Low power switching 150 mVA with min. voltage 5 V & I min 10 mA
Short-circuit load 250 A / 30 ms
Response time (bounce time not included) DC < 20 ms - AC < 21 ms
Bounce time < 9 ms

Contacts rating

DIRECT CURRENT
resistive load inductive load L/R = 20 ms
ALTERNATIVE CURRENT
resistive load inductive load cos phi = 0.7

Versions

Following options are available with 2246 relay : test push-button, mechanical position indicator.

Standard version includes complete withdrawal.

For any complementary information regarding mounting and withdrawal, please refer to the technical support pages of this site or contact us.

Non-contractual document - characteristics to be confirmed before order
TEC AUTOMATISMES reserves the right to modify description and specifications without notice
