Relais instantanés et de Fonction

Print the card

Description

Timer relay - 2 CO contacts  - 5 A.

Pluggable on the following sockets : 9876, 9877, EVB/GE, EVC/GE, ER/GE 2.8 et ER/GE.

Dimensions

Connection

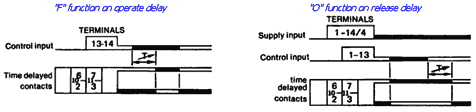

Operation principle

Timing function selector on front face ("F" on closing - "O" on opening).

Time selection by range selector switch and potentiometer on front face (0,1 to 400 sec in 2 ranges).

Visualisation of the output state by LED.

Protection of the selections by closable front cover.

See operation scheme hereafter.

Plan

Technical features

Function timer
Presentation under cover
Connection on front or rear wiring socket
Operating temperature - 10 to + 55°C
Storage temperature - 40°C to + 80°C
Climatic protection reinforced climatic protection
Shock voltage 50 g - 11 ms
Weight 100 g.

Coil data

  Direct current Alternative current
Min. nominal voltage DC 24 V 24 V
Min. nominal voltage AC 240 V 220 V
Operating range -20/+10% of nominal voltage

Contacts

Number of contacts 2
Max. load current 5 A per contact
Low power switching 100 mVA with min. voltage 1 V or I min 1 mA
Short-circuit load 100 A - 30 ms
Response time (bounce time not included) 20 ms

Versions

Withdrawal is proposed as an option.

For any complementary information regarding mounting and withdrawal, please refer to the technical support pages of this site or contact us.

Non-contractual document - characteristics to be confirmed before order
TEC AUTOMATISMES reserves the right to modify description and specifications without notice
