Description

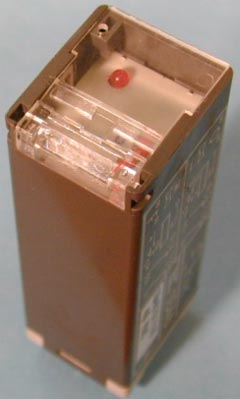

Impulse relay - 2 CO contacts  - 5 A.

Pluggable on the following sockets : 9876, 9877, EVB/GE, EVC/GE, ER/GE 2.8 et ER/GE.

Dimensions

Connection

Operation principle

Function selector switch on front face ("F" on closing - "O" on opening).

Fixed impulse time between 0.3 and 0.45 seconds.

Recycling time : 500 ms
Repeatability : + or - 1%
Time accuracy (according to cumulated variation factors) : + or - 10% T.

Visualisation of the output state by LED.

Protection of the selections by closable front cover.

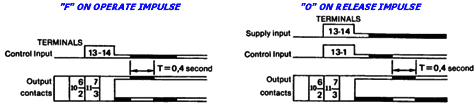

See the operation diagram hereafter.

Plan

Technical features

Function impulse
Presentation under cover
Connection on front or rear wiring socket
Operating temperature - 10 to + 55°C
Storage temperature - 40°C to + 80°C
Dielectric strength 2,5 KV - 50 Hz - 1 mn
Weight 100 g.

Coil data

  Direct current Alternative current
Min. nominal voltage DC 24 V 24 V
Min. nominal voltage AC 125 V 240 V
Operating range -20/+10% of nominal voltage

Contacts

Number of contacts 2
Max. load current 5 A per contact
Low power switching 100 mVA with min. voltage 1 V or I min 1 mA
Short-circuit load 100 A - 30 ms

Versions

Reinforced climatic protection and withdrawal are proposed as options.

For any complementary information regarding mounting and withdrawal, please refer to the technical support pages of this site or contact us.

Non-contractual document - characteristics to be confirmed before order
TEC AUTOMATISMES reserves the right to modify description and specifications without notice
