1902

    Description

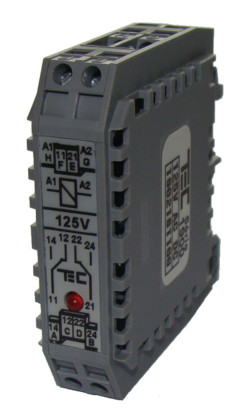

    1902 interface module, 2 RT - 5 A

    this interface module has a red indicator led (3mm diameter).

    The terminal max. width is 18mm, except for 220 V AC version which has 23mm of width.

    1902 module fixing is adapted for symetricals and asymetricals din rails.

    Dimensions

    Connection

    Technical features

    Function Instantaneous
    Presentation Under case
    Connection Screw terminal with 4 mm² max. section - squeeze
    Operating temperature -20° C +40° C
    Storage temperature -40°C +85°C
    Climatic protection Reinforced climatic protection
    Dielectric strength 2,5 kV between coil and contacts
    Operate time 13 ms max.
    Release time 6 ms max.

    Coil data

      Direct current Alternative current
    Min. nominal voltage DC 6 - 12 -24 - 48 - 110 - 127 V 6 - 12 - 24 - 48 - 110 - 127 - 230 V
    Operating range -10% +20% rV for -5°C to +40°C
    Power requirement 0,7 W to 0,9 W according voltage 0,7 VA to 1,1 VA according voltage

    Contacts

    Number of contacts 2 RT
    Max. load current 5 A
    Bounce time 1,5 ms on operate - 4 ms on release

    Non-contractual document - characteristics to be confirmed before order
    TEC AUTOMATISMES reserves the right to modify description and specifications without notice
