X4001

    Description

    X4001 interface module, 2 RT - 5 A

    This interface module has a indicator led and a free wheeling diod to protect against reverse voltage.

    X4001 module fixing is adapted for asymetricals din rails.

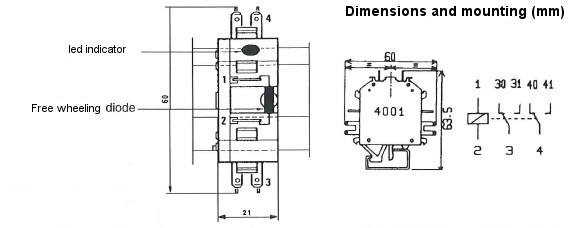

    Dimensions

    Technical features

    Function Instantaneous
    Presentation Under case
    Connection On double flap for clips 2,8 mm
    Number of mechanical operations See contacts rating
    Operating temperature -25°C to +50°C
    Storage temperature -40°C to +80°C
    Climatic protection Reinforced climatic protection
    Dielectric strength Between coil and contacts - 2 500 V eff

    Coil data

      Direct current Alternative current
    Min. nominal voltage DC 6 - 12 -24 - 48 - 110 - 130 - 220 V
    Operating range -20% +10% of nominal voltage
    Power requirement 1W

    Contacts

    Number of contacts 2 RT
    Max. load current 5A

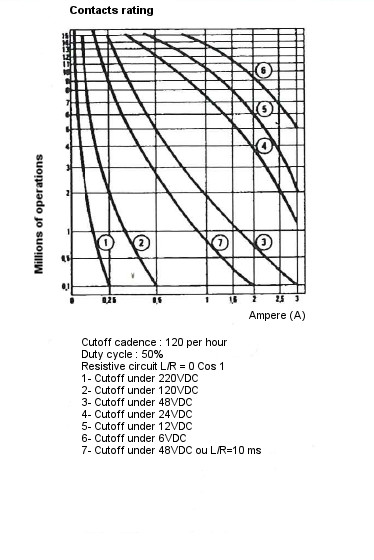

    Contacts rating

    DIRECT CURRENT
    Contacts rating according to the differentes voltages

    Versions

    • EDF spécific version

    Non-contractual document - characteristics to be confirmed before order
    TEC AUTOMATISMES reserves the right to modify description and specifications without notice
