7347
Weight : 150 g.
Power supply : 6 to 220 VDC
Description
LINEAR SOLENOID "U" FORM FOR BASIC APPLICATIONS
TYPES :
. Pull type
. Push type
. Through type
Power requirements
• Direct current
Duty cycle |
100 % |
25 % |
5 % |
Nominal power |
5,8 W |
15 W |
67 W |

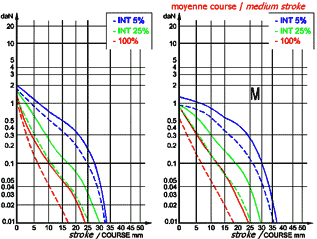

Performances
• Direct current |
![](../_upload/ressources/electro-aimant/lineaire_en_u/7347_courbes.gif) |
——– nominal voltage cold coil / - - - - min. voltage hot coil |
Dimensions
• Direct current |
7347 - pull type |
|
7347 - push type |
![](../images/spacer.gif) |
![](../images/spacer.gif) |
![](../images/spacer.gif) |
![](../_upload/ressources/electro-aimant/lineaire_en_u/7347_enc_tirant.gif) |
|
![](../_upload/ressources/electro-aimant/lineaire_en_u/7347_enc_poussant.gif) |
|
Technical features
Connection |
Snap for clips (6,35x0,8) |
Non-contractual document - characteristics to be confirmed before order
