7P57

Weight : 750 g.

Power supply : 12 to 220 VDC - 12 to 230 VAC

Description

LINEAR SOLENOID WITH GUIDE CLIPS FOR INTENSIVE APPLICATIONS

TYPES
:

. Pull type
. Push type
. Through type


Power requirements

• Direct current

Duty cycle 100 % 25 % 5 %
Nominal power 13 W 35 W 130 W

• Alternative current

Duty cycle 100 % 25 % 5 %
Nominal power 15 VA 36 VA 80 VA

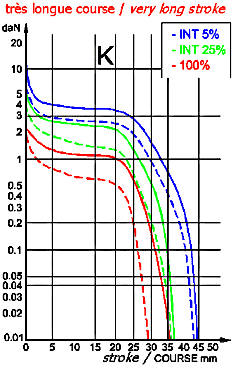

Performances

• Direct current



• Alternative current


——– nominal voltage cold coil / - - - - min. voltage hot coil   ——– nominal voltage cold coil / - - - - min. voltage hot coil

Dimensions

• Direct current

7P57 - pull type   7P57 - push type


• Alternative current

7P57 - pull type   7P57 - push type


Technical features

Connection On wires length 150 mm

Non-contractual document - characteristics to be confirmed before order
TEC AUTOMATISMES reserves the right to modify description and specifications without notice
