7P99

Weight : 1600 g.

Power supply : 12 to 220 VDC - 12 to 230 VAC

Description

LINEAR SOLENOID WITH GUIDE CLIPS FOR INTENSIVE APPLICATIONS

TYPES :

. Pull type
. Push type
. Through type

:. Pull type. Push type. Through type

Power requirements

• Direct current

Duty cycle 100 % 25 % 5 %
Nominal power 19 W 58 W 260 W

• Alternative current

Duty cycle 100 % 25 % 5 %
Nominal power 17 VA 54 VA 280 VA

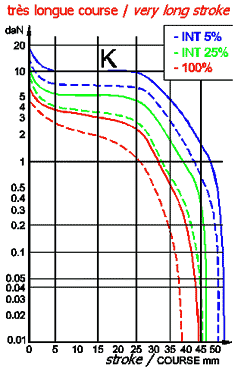

Performances

• Direct current



• Alternative current


——– nominal voltage cold coil / - - - - min. voltage hot coil   ——– nominal voltage cold coil / - - - - min. voltage hot coil

Dimensions

• Direct current

7P99 - pull type   7P99 - push type


• Alternative current

7P99 - pull type   7P99 - push type


Technical features

Connection On wires length 150 mm - For DIN 43650 connector

Non-contractual document - characteristics to be confirmed before order
TEC AUTOMATISMES reserves the right to modify description and specifications without notice
