7110

Weight : 40 g.

Power supply : 6 to 220 VDC - 6 to 230 VAC

Description

LINEAR SOLENOID "D" FORM FOR CURRENT APPLICATIONS

TYPES
 :

. Pull type
. Push type
. Through type


Power requirements

• Direct current

Duty cycle 100 % 25 % 5 %
Nominal power 2,7 W 5 W 15 W

• Alternative current

Duty cycle 100 % 25 % 5 %
Nominal power 3,7 VA 8,6 VA 21 VA

Performances

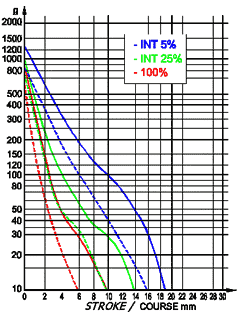

• Direct current

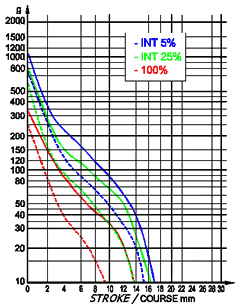

• Alternative current


——– nominal voltage cold coil / - - - - min. voltage hot coil   ——– nominal voltage cold coil / - - - - min. voltage hot coil

Dimensions

• Direct current

7110 - pull type   7110 - push type


• Alternative current

7110 - pull type   7110 - push type


Technical features

Connection Snap for clips (4,75x0,5 or 2,8x0,5) - On wires length 60 mm

Non-contractual document - characteristics to be confirmed before order
TEC AUTOMATISMES reserves the right to modify description and specifications without notice
