7130

Weight : 100 g.

Power supply : 6 to 220 VDC - 6 to 230 VAC

Description

LINEAR SOLENOID "D" FORM FOR CURRENT APPLICATIONS

TYPES :

. Pull type
. Push type
. Trough type

:. Pull type. Push type. Trough type

Power requirements

• Direct current

Duty cycle 100 % 25 % 5 %
Nominal power 3,6 W 8,7 W 33 W

• Alternative current

Duty cycle 100 % 25 % 5 %
Nominal power 5,7 VA 16 VA 50 VA

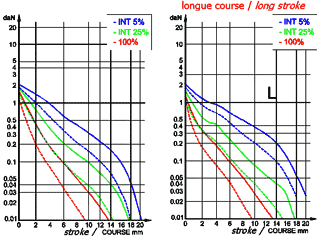

Performances

• Direct current



• Alternative current


——– nominal voltage cold coil / - - - - min. voltage hot coil   ——– nominal voltage cold coil / - - - - min. voltage hot coil

Dimensions

• Direct current

7130 - pull type   7130 - push type


• Alternative current

7130 - pull type   7130 - push type


Technical features

Connection Snap for clips (4,75x0,5 or 2,8x0,5) - On wires length 110 mm

Non-contractual document - characteristics to be confirmed before order
TEC AUTOMATISMES reserves the right to modify description and specifications without notice
