7165

Weight : 400 g.

Power supply : 6 to 220 VDC - 6 to 230 VAC

Description

LINEAR SOLENOID "D" FORM FOR CURRENT APPLICATIONS

TYPES
:

. Pull type
. Push type
. Through type


Power requirements

• Direct current

Duty cycle 100 % 25 % 5 %
Nominal power 8,3 W 25 W 108 W

• Alternative current

Duty cycle 100 % 25 % 5 %
Nominal power 11 VA 45 VA 200 VA

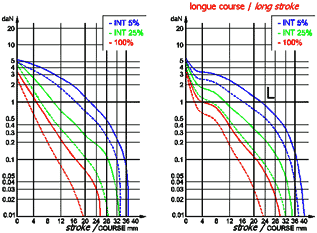

Performances

• Direct current



• Alternative current


——– nominal voltage cold coil / - - - - min. voltage hot coil   ——– nominal voltage cold coil / - - - - min. voltage hot coil

Dimensions

• Direct current

7165 - pull type   7165 - push type


• Alternative current

7165 - pull type   7165 - push type


Technical features

Connection Snap for clips (4,75x0,5 or 2,8x0,5) - On wires L=110 mm - Solder terminals 6.35x0.8

Non-contractual document - characteristics to be confirmed before order
TEC AUTOMATISMES reserves the right to modify description and specifications without notice
