7153

Weight : 300 g.

Power supply : 6 to 220 VDC - 6 to 230 VAC

Description

LINEAR SOLENOID "D" FORM FOR CURRENT APPLICATIONS

TYPES :

. Pull type
. Push type
. Through type

:. Pull type. Push type. Through type

Power requirements

• Direct current

Duty cycle 100 % 25 % 5 %
Nominal power 7,2 W 19,5 W 75,5 W

• Alternative current

Duty cycle 100 % 25 % 5 %
Nominal power 12 VA 39 VA 170 VA

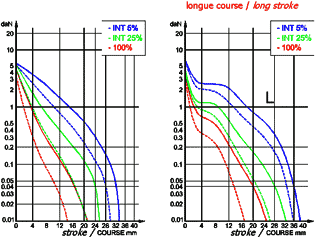

Performances

• Direct current



• Alternative current


——– nominal voltage cold coil / - - - - min. voltage hot coil   ——– nominal voltage cold coil / - - - - min. voltage hot coil

Dimensions

• Direct current

7153 - pull type   7153 - push type


• Alternative current

7153 - pull type   7153 - push type


Technical features

Connection Snap for clips (6,35x0,8) - On wires length 110 mm - Cosses à souder

Non-contractual document - characteristics to be confirmed before order
TEC AUTOMATISMES reserves the right to modify description and specifications without notice
