Electro-aimants et ventouses

Print the card

7173

Weight : 350 g.

Power supply : 6 to 220 VDC - 6 to 230 VAC

Description

LINEAR SOLENOID "D" FORM FOR CURRENT APPLICATIONS

TYPES
:

. Pull type
. Push type
. Through type


Power requirements

• Direct current

Duty cycle 100 % 25 % 5 %
Nominal power 7,2 W 22 W 105 W

• Alternative current

Duty cycle 100 % 25 % 5 %
Nominal power 12,6 VA 45 VA 210 VA

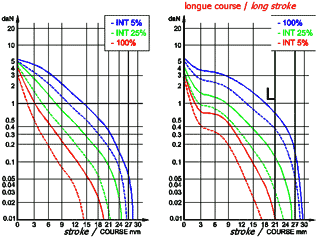

Performances

• Direct current



• Alternative current


——– nominal voltage cold coil / - - - - min. voltage hot coil   ——– nominal voltage cold coil / - - - - min. voltage hot coil

Dimensions

• Direct current

7173.00 - pull type   7173.10 - push type


• Alternative current

7173.50 - pull type   7173.60 - push type


Technical features

Connection Snap for clips (4,75x0,5 or 2,8x0,5) - On wires length 110 mm - Solder terminals

Non-contractual document - characteristics to be confirmed before order
TEC AUTOMATISMES reserves the right to modify description and specifications without notice
